VERSATILE PRODUCTS FOR THE WATER INDUSTRY

CHEMICAL INDUCTION HIGH RATE MIXING SYSTEMS

THE MASTRRR COMPANY manufacturers a variety of chemical induction ultra highrate flash mixers and gas cylinder heating blankets for the municipal water and wastewater industry. The induction unit eliminates the need for water supplies, boosterpumps, ejectors, diffusers and mechanical or static mixers.

The GAS MASTRRR submersible series and INTRUDRRR flanged inline series are designed to induct and flash mix gas and or liquid chemicals with superior velocity gradient mixing intensity into open channels, basins, tanks or pipelines. Applications include dechlorination, highrate disinfection for water, wastewater, and CSO basin applications, coagulant flash mixing and many more single or dual feed applications.



GAS CYLINDER HEATING BLANKET SYSTEMS

SARAPE gas cylinder heating blankets allow permissible gas withdraw rates from gas 150 lb. cylinders and 1 ton containers as ambient temperature drops



GAS MASTRRR SUBMERSIBLE

SERIES 32 - Designed for vacuum inducting and flash mixing gas and or liquid chemicals into open channels or basins. The induction units are available in ranges from 1/2 - 25 Hp for feed rates up to 10,000 PPD gas and 60 GPM liquid chemical per unit. The mixer utilizes a UHMW Polyethylene rotating distributor to disperse the chemical mix in a 360 degree radial discharge pattern.

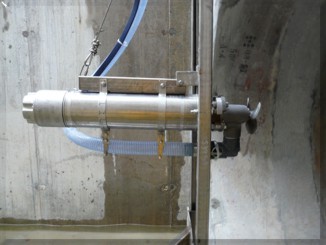

SERIES 32PT - Designed for non-vacuum flash mixing of liquid chemicals into open channels or basins. The mixing units are available in ranges from 2 - 25 Hp for feed rates up to 60 GPM liquid chemical. The mixer utilizes an unobstructed rotating Hasteloy-C propeller to disperse the chemical mix in an axial discharge pattern.





SERIES 32PT

GAS MASTRRR X-PROOF SUBMERSIBLE

SERIES 32XP - Designed for non-vacuum flash mixing of Sodium Hypochlorite, chlorine solution, or Sodium Bisulfite into open channels or basins. The mixer utilizes a rotating Hasteloy-C propeller to disperse the chemical mix in an axial discharge pattern. The units are supplied with X-Proof motors for CSO or SSO basins requiring Class 1, Division 1 rated motors.







INTRUDRRR FLANGED INLINE

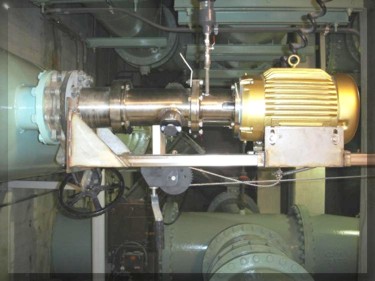

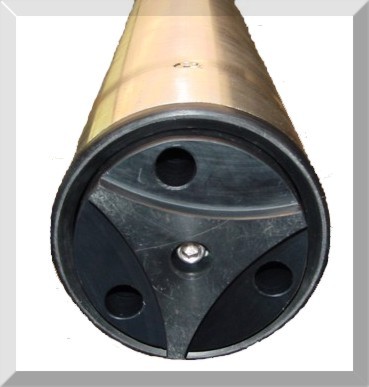

SERIES 35F - Designed for vacuum inducting and flash mixing gas and or liquid chemicals into low pressure pipelines from 6" to over 100". The mixer utilizes a UHMW Polyethylene rotating distributor to disperse the chemical mix in a 360 degree radial discharge patern.

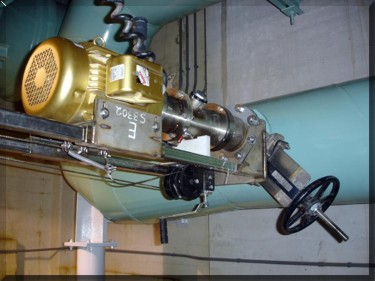

SERIES 35FP - Designed for non-vacuum flash mixing of liquid chemicals into into pipelines from 6" to over 100". The mixer utilizes a rotating Hasteloy-C propeller to disperse the chemical mix in an axial discharge pattern.

* Both units are inserted through a PG-1 flanged packing gland and can be inserted or extracted from the pipeline via an IR-1 extraction device without the need for pipeline shut down.

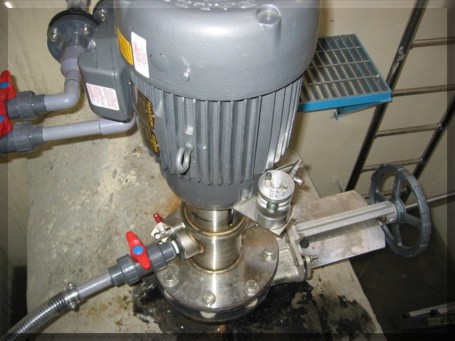

SERIES 3505F (Direct Flanged) - Designed for vacuum inducting and flash mixing gas and or liquid chemicals into low pressure pipelines from 6" to over 100". The mixer utilizes a UHMW Polyethylene rotating distributor to disperse the chemical mix in a 360 degree radial discharge patern.

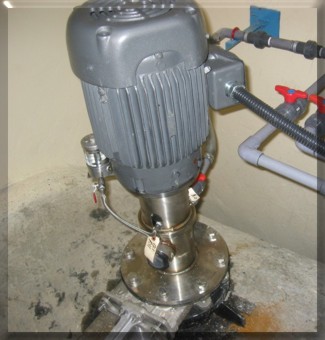

SERIES 3505FP (Direct Flanged) - Designed for non-vacuum flash mixing of liquid chemicals into into pipelines from 6" to over 100". The mixer utilizes a rotating Hasteloy-C propeller to disperse the chemical mix in an axial discharge pattern.

* Both units are mounted directly to the pipeline flange and require pipeline shut down to remove for maintenance inspection.





SERIES 35FP

SERIES 3505F





SAVVY CONTROL PANELS

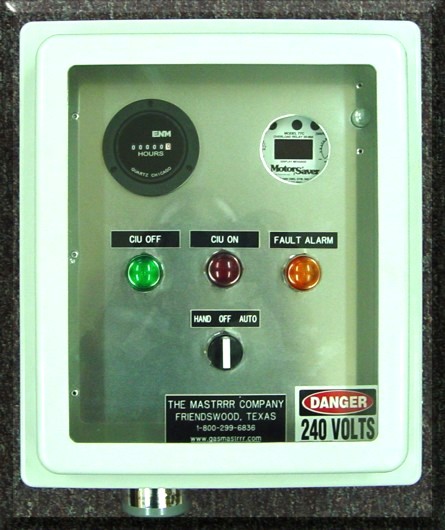

SAVVY 1- Designed for use with your HP -115 VAC or 1 HP 230 VAC single phase GAS MASTRRR series 32 submersible mixers. This non-metallic FRP Nema 4X housed control panel provideds maximum control and protection for your mixer motor.

SAVVY 3 - Designed for use with all three phase GAS MASTRRR series submersible units and INTRUDRRR series inline mixers. This 316 stainless steel Nema 4X housed control panel provideds maximum control and protection for your mixer motor.

SAVVY 4- Designed for use with all three phase GAS MASTRRR series submersible units and INTRUDRRR series inline mixers. This non-metallic FRP Nema 4X housed control panel provideds maximum control and protection for your mixer motor.

SAVVY 5 - Designed for use with all three phase GAS MASTRRR series submersible units and INTRUDRRR series inline mixers where variable mixing intensity is desired. This non-metallic FRP Nema 4X housed control panel provideds maximum control and protection for your mixer motor.

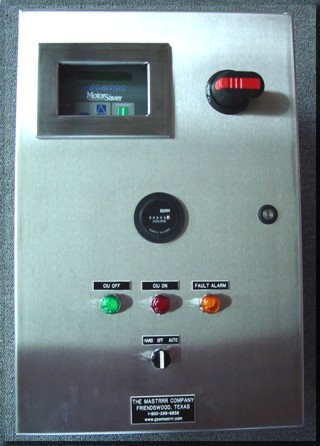

SAVVY 3 - 316 S.S.

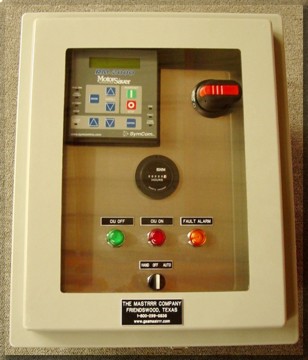

SAVVY 4 - FRP



SAVVY 5- FRP

SARAPE GAS CYLINDER HEATING BLANKETS

The SARAPE heating blankets are designed and used to allow normal permissible withdraw rates from 150 lb. and ton cylinders as ambient temperature drops. SARAPE blankets are not designed to overfeed gas or eliminate evaporator systems. The blankets are industrial grade, strap on removable heat blankets, fabricated of extreme wear resistant heavy duty fiberglass woven mesh non-metallic outer shell coated with Teflon and silicon for outdoor waterproof service in corrosive areas.

The SARAPE blankets are not rated for hazardous or explosive areas.

Optional control panels are available for multiple blanket applications or for preset ambient temperature on/off control.

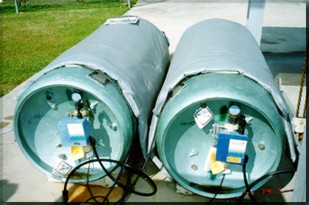

SARAPE 1 TON CONTAINERS

ACCESSORIES: SERIES 32, 32PT, & 32XP

ACCESSORIES: SERIES 35F & 35FP
