SARAPE CYLINDER HEATING BLANKET SYSTEMS
The SARAPE heating blankets are designed and used to allow normal permissible withdraw rates from 150 lb. cylinders and 1 Ton containers as ambient temperature drops. The SARAPE  blankets are not designed to overfeed gas or eliminate evaporator systems. They are industrial grade removable heat blankets fabricated with an extreme wear resistant heavy duty fiberglass woven mesh non-metallic outer shell coated with Teflon and silicon for outdoor waterproof service in corrosive areas. They operate on 120 VAC power and have an FM approved bi-metallic element sensing direct cylinder temperature. This direct sensing safety element prevents the cylinder temperature from rising above 105º degrees (F).   No exposed metal parts such as clips, pins, buckles or chain loop lace are used in order to avoid leaking, fraying or snagging.       The SARAPE blankets are not rated for hazardous or explosive areas.
SARAPE Heating Blankets PDF
1-281-648-8703
Home Setting the Standard Products PDF Downloads Exchange Program Contact Us
THE MASTRRR COMPANY PRODUCTS ARE PROUDLY MADE IN THE USA
Chemical Induction High Rate Mixing Systems   1-281-648-8703
SARAPE 150 lb. CYLINDERS
SARAPE 1 TON CONTAINERS
The SARAPE layered heat blanket is fabricated with a bottom shield of silicon impregnated heavy woven fiberglass fabric that is extremely wear resistant. Then a single run of FM and CSA approved sheathed constant wattage heating cable is laced and stitched in place.  The next layer is a reflective cover to radiate heat throughout the blanket. Over the reflective cover is “TEMP-MAT” hi-temperature (fibrous) insulation. The final top cover is Teflon coated heavy woven fiberglass fabric. The assembly is stitched and cross-stitched complete with Velcro tie-down straps to avoid over tightening the blanket. Handy grab straps are strategically stitched in place for operator ease in lifting blanket and avoiding “folding” of inner heating cable. The temperature rise within the lower blanket layer containing the heating cable is protected with a FM approved bi-metallic element sensing direct cylinder temperature. The cylinder sensing element is set at 105º degree (F) shutoff, below maximum permissible gas cylinder temperature. The external cord  is connected to a 120 VAC grounded receptacle feeding from a circuit breaker having a 30 mA AC EPD trip ground fault using a 15 AMP safety circuit breaker for added operator safety.
1. TEFLON COATED HEAVY-WOVEN FIBERGLASS FABRIC 2. “TEMP-MAT” HIGH-TEMPERATURE (FIBROUS) INSULATION. 3. FOIL ALUMINUM REFLECTIVE COVER 4. CONSTANT-WATTAGE HEATING CABLE TEFLON JACKETED     8 WATT PER FOOT     5. BOTTOM LAYER (CYLINDER SIDE) OF SILICONE     IMPREGNATED HEAVY-WOVEN FIBROUS FABRIC
SARAPE 150 lb. BLANKET SPECIFICATIONS: Service Voltage:    120 VAC Current  Draw:       2 amps Power Cord:          15’ long, 16 Gauge 3 conductor SJTW Circuit Breaker Size:                       1-2 Blankets use 10A                                 1-5 Blankets use 15A Safety Element Range:                    On - 90º degree (F)                                 Off - 105º degree (F) Blanket Size:          43” X 45” X 2” Weight:                   20 lbs. Area Classification:       Ordinary Non-hazordous Indoor/Outdoor                                  Direct Exposure
SARAPE 1 TON BLANKET SPECIFICATIONS: Service Voltage:    120 VAC Current  Draw:       5 amps Power Cord:          15’ long, 16 Gauge 3 conductor SJTW Circuit Breaker Size:                       1-2 Blankets use 15A                                1-5 Blankets use 30A Safety Element  Range:                    On - 90º degree (F)                                 Off - 105º degree (F) Blanket Size:          72” X 72” X 2” Weight:                   52 lbs. Area Classification:       Ordinary Non-hazordous                                 Indoor/Outdoor Direct Exposure
                       SARAPE 150 lb. BLANKET                                                             SARAPE 1 TON BLANKET

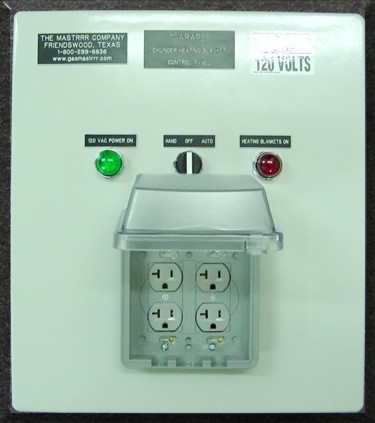

SARAPE CYLINDER HEATING BLANKET CONTROL PANEL The SARAPE control panel is designed for automatic blanket control as ambient temperature drops and rises. The control panel automatically turns the SARAPE  blankets on as the ambient temperature drops below 60º degree (F) and turns the blankets off as ambient temperature rises above 75º degree (F).     The panel gives lighted indication of supply voltage power and blanket on status.  The HOA selector switch allows hand (direct control), off (all blankets off), and automatic (ambient temperature control). The panel is NEMA 4X rated non-metallic FRP for outdoor service in corrosive areas. Panels are available for two, four or multiple cylinder applications. Other options include adjustable thermostat controls. Consult factory for option details. CONTROL PANEL FUNCTIONS H-O-A CONTROL SWITCH HAND (DIRECT CALL FOR SERVICE) OFF (ALL BLANKETS OFF) AUTO (CONTROLLED BY AMBIENT TEMPERATURE SENSOR) INDICATION LIGHTS WHITE: AC POWER SUPPLY ON RED: HEATING BLANKETS ON NON ADJUSTABLE AMBIENT TEMPERATURE SENSOR ON/OFF RANGE   BLANKETS ON:  AMBIENT TEMPERATURE DROPS BELOW 60º F. BLANKETS OFF: AMBIENT TEMPERATURE RISES ABOVE 75º F. SENSOR LOCATED ON SIDE OF CONTROL PANEL. DIRECT CYLINDER TEMPERATURE SENSOR ON/OFF RANGE BLANKETS ON: CYLINDER TEMPERATURE DROPS BELOW 90º F. BLANKETS OFF: CYLINDER TEMPERATURE RISES ABOVE 105º F. OPTIONAL BLANKET OVER HEAT OR FAULT INDICATION.
